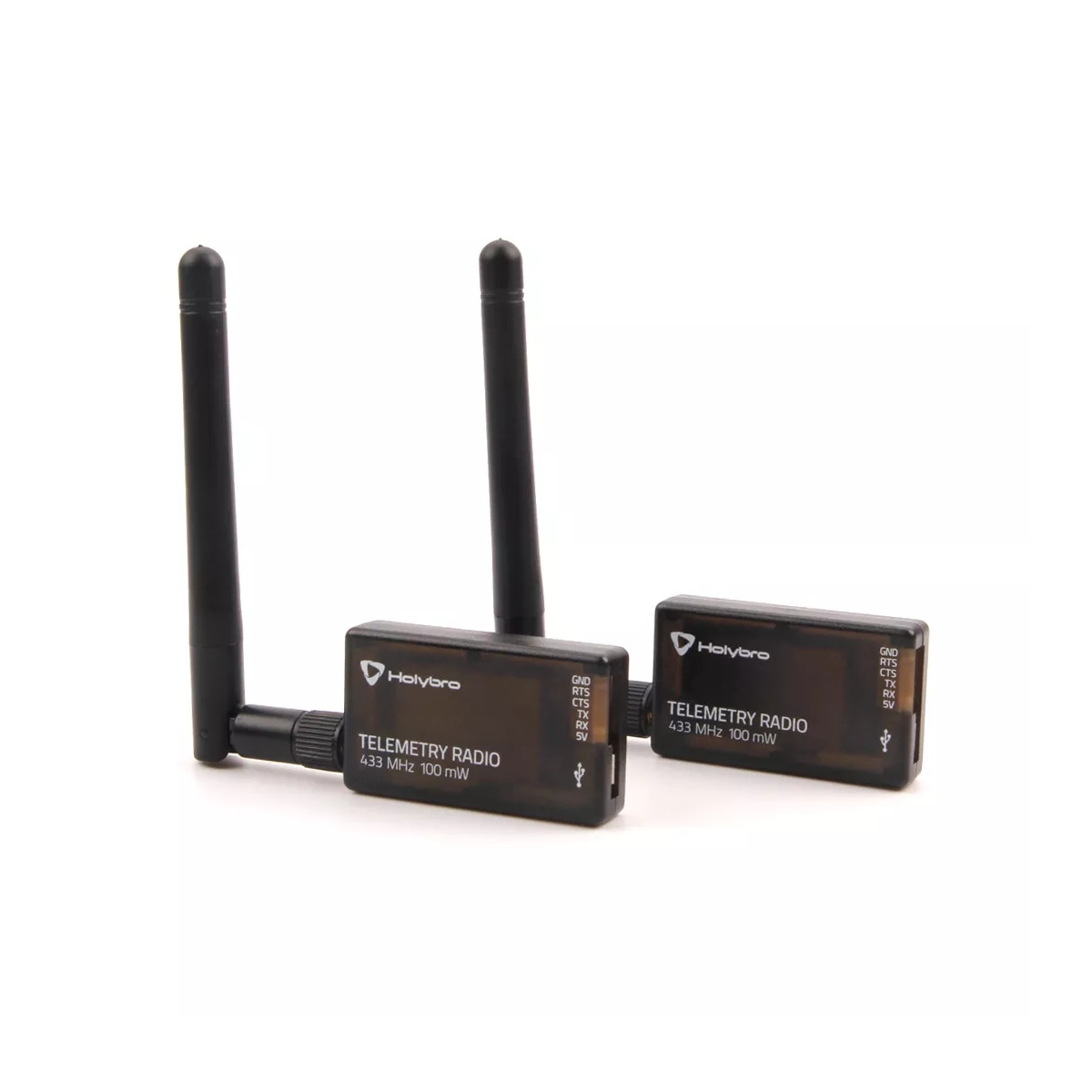

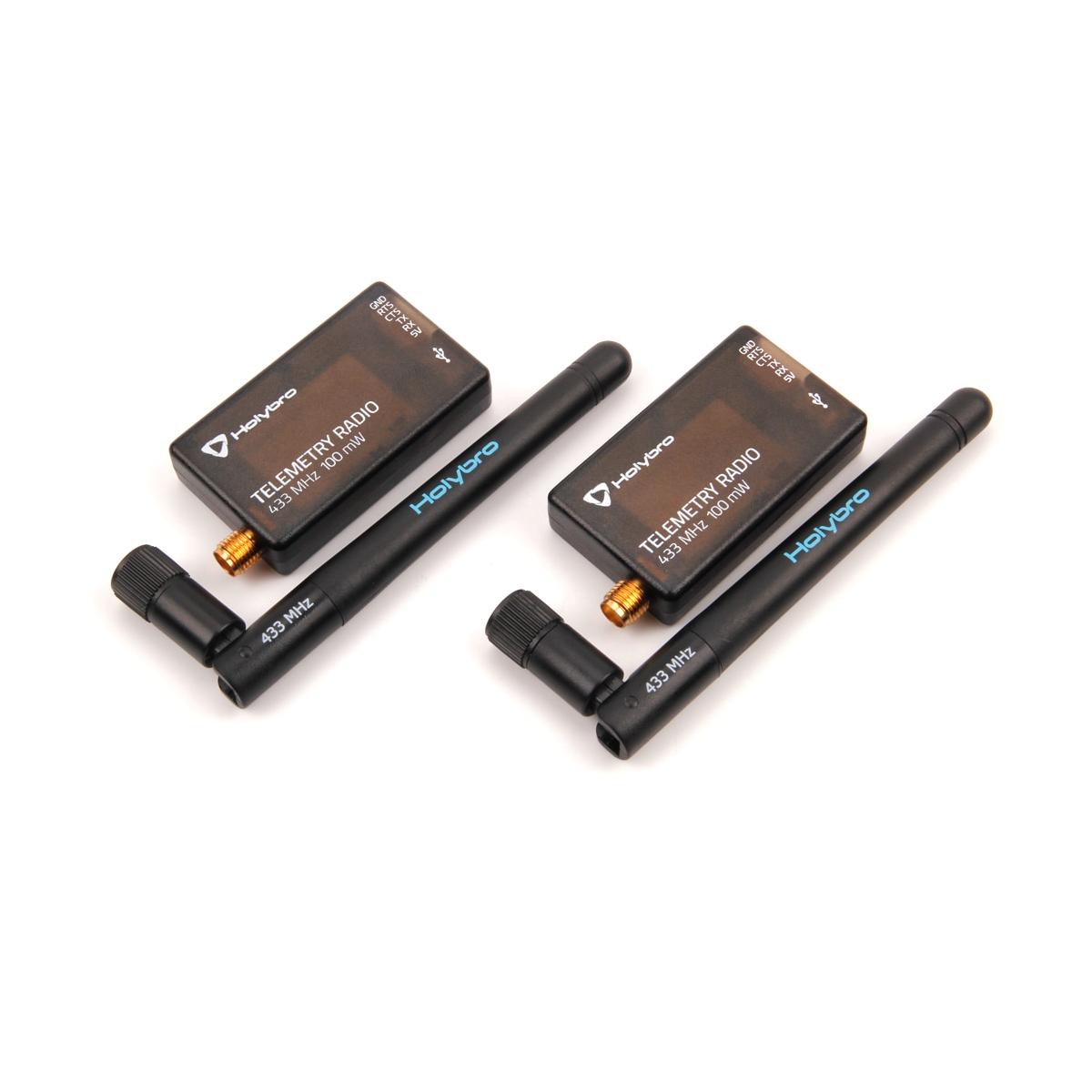

Holybro Telemetry Modules
This radio module kit is plug-n-play for all Pixhawks. 203 / 5 000 Résultats de traduction Résultat de traduction It provides the easiest way to set up a telemetry connection between your autopilot and a ground station and to be integrated with Mission Planner, Ardupilot, QGroundControl, PX4 Autopilot.
Frequency : 433MHZ
112,00€
In stock
Holybro’s V3 telemetry module kit allows you to transmit all telemetry information from the drone, and receive it on the ground via a compatible device and application.
Features :
Open source SIK firmware
Plug-n-play for standard Pixhawk flight controllers
The easiest way to connect your autopilot and ground station
Air and ground modules are interchangeable
Micro-USB port (Type-C adapter cable included)

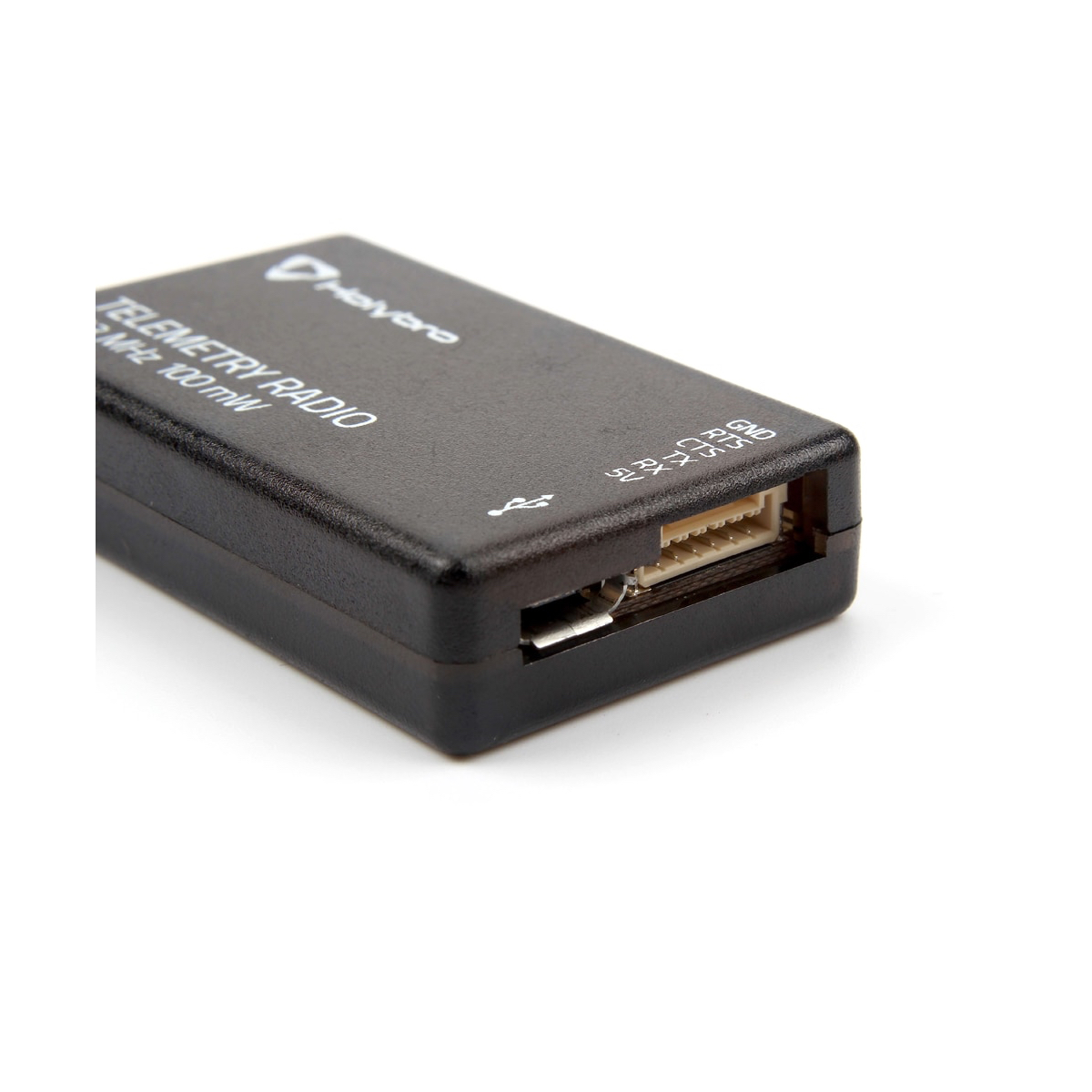

6 position JST-GH connector
Specifications :
100mW maximum output power (adjustable) -117dBm receive sensitivity
RP-SMA connector
Bi-directional, full-duplex communication via an adaptive TDM UART interface
Transparent serial link
MAVLink ready protocol
Frequency Hopping Spread Spectrum (FHSS) Configurable Duty Cycle
Error correction fixes up to 25% of bit errors – SIK open source firmware
Configurable via Mission Planner and APM Planner
FT231X is a USB to BASIC UART integrated circuit
Dimensions :
28 x 53 x 10,7 mm (without antenna)
Electrical data
Supply voltage: 5V DC (from USB or JST-GH)
Transmission current: 100 mA at 20 dBm
Receiving current: 25 mA
Serial interface: 3.3V UART

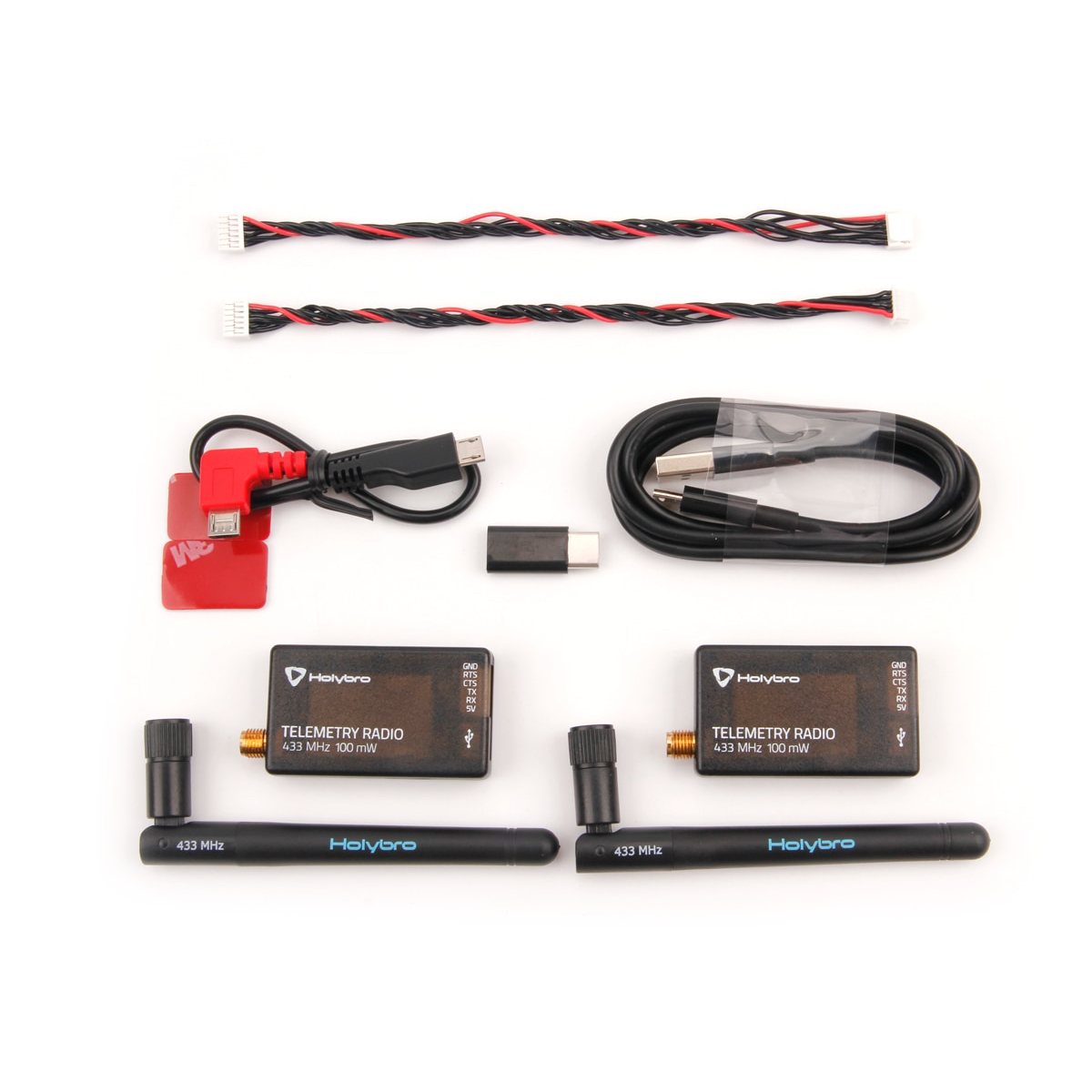

- Radio modules with antennas *2
- Micro-USB to USB-A cable *1
- Micro-USB to Micro-USB OTG Adapter Cable*1
- Micro USB to Type C Adapter
- JST-GH-6P to JST-GH-6P Cable *1 (for Pixhawk Standard FC)
- JST-GH-6P to Molex DF13 6P (for Pix32, Pixhawk 2.4.6, etc.)
